TL;DR — Simple Azure tenant + single subscription layout with two resource groups (az500-study-rg and forensics-lab-rg) and scoped roles for two lab users. Designed to support AZ-500 study, forensics practice, and be easy to grow or tear down.

Azure Environment Structure (Current Notes)

I wanted a clean setup that works for both AZ-500 studying and building my forensics lab.
Here’s how I structured it so far and why:

Structure Overview

• Tenant (Entra ID)
  The root of everything. Users, groups, and directory-level roles live here.

• Subscription: Azure subscription 1
  Single subscription for now (the free trial upgraded if needed). All resources will live inside this.

• Resource Groups

  • az500-study-rg → For labs and exercises specific to AZ-500 material.
  • forensics-lab-rg → For my own sandbox to simulate incidents, collect evidence, and practice investigations.

• Users

  • az500.user → Analyst-style account for AZ-500 study.
  • forensics.user → Account to simulate analyst or attacker roles in the forensics lab.

• Entra Roles (Tenant level)
  Both users have:

  • Security Reader (see risky sign-ins, alerts)
  • Reports Reader (view sign-in and audit logs)

• Azure RBAC Roles (Subscription level)
  Both users have:

  • Reader
  • Log Analytics Reader
  • Security Reader

Refresher:

• Tenant-level roles (Entra) → directory-wide, apply to all subscriptions under the tenant.
• RBAC roles (Azure) → scope-bound, apply only where you assign them (sub, RG, resource).

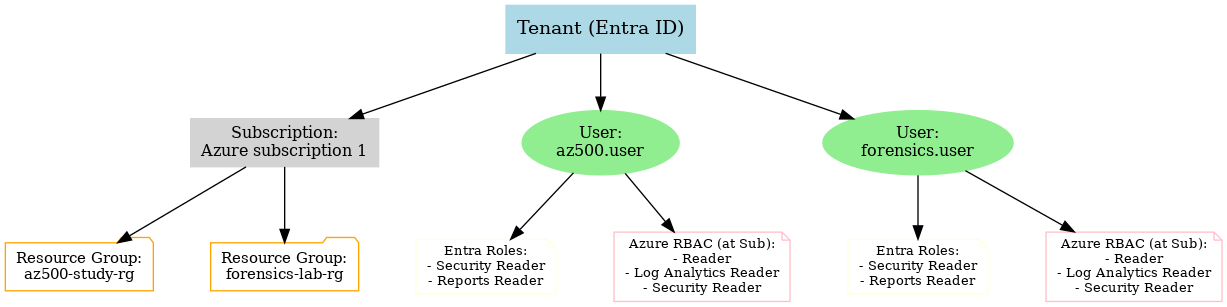

Diagram

Why Structure It This Way?

• Separation of Concerns
  Splitting resources into two groups (az500-study-rg and forensics-lab-rg) keeps experiments and study material clean. I can delete one RG without touching the other.

• Clarity for Roles
  Assigning both Entra roles (identity-level visibility) and RBAC roles (resource-level visibility) makes test users realistic for security monitoring and forensics.

• Foundation for Growth
  This structure scales easily. I can add more users, subscriptions, or resources without reworking the basics.

• Portfolio-Ready
  The diagram helps me (and potentially employers) see that I understand Azure’s hierarchy: Tenant → Subscription → Resource Groups → Resources, with clear role assignments.

This is my baseline Azure environment setup before adding actual lab resources (VMs, storage accounts, Log Analytics).
I'll expand this as I build the forensics side out (e.g., dedicated evidence storage, jump host, and simulated attacker/defender identities).
